DETAILS

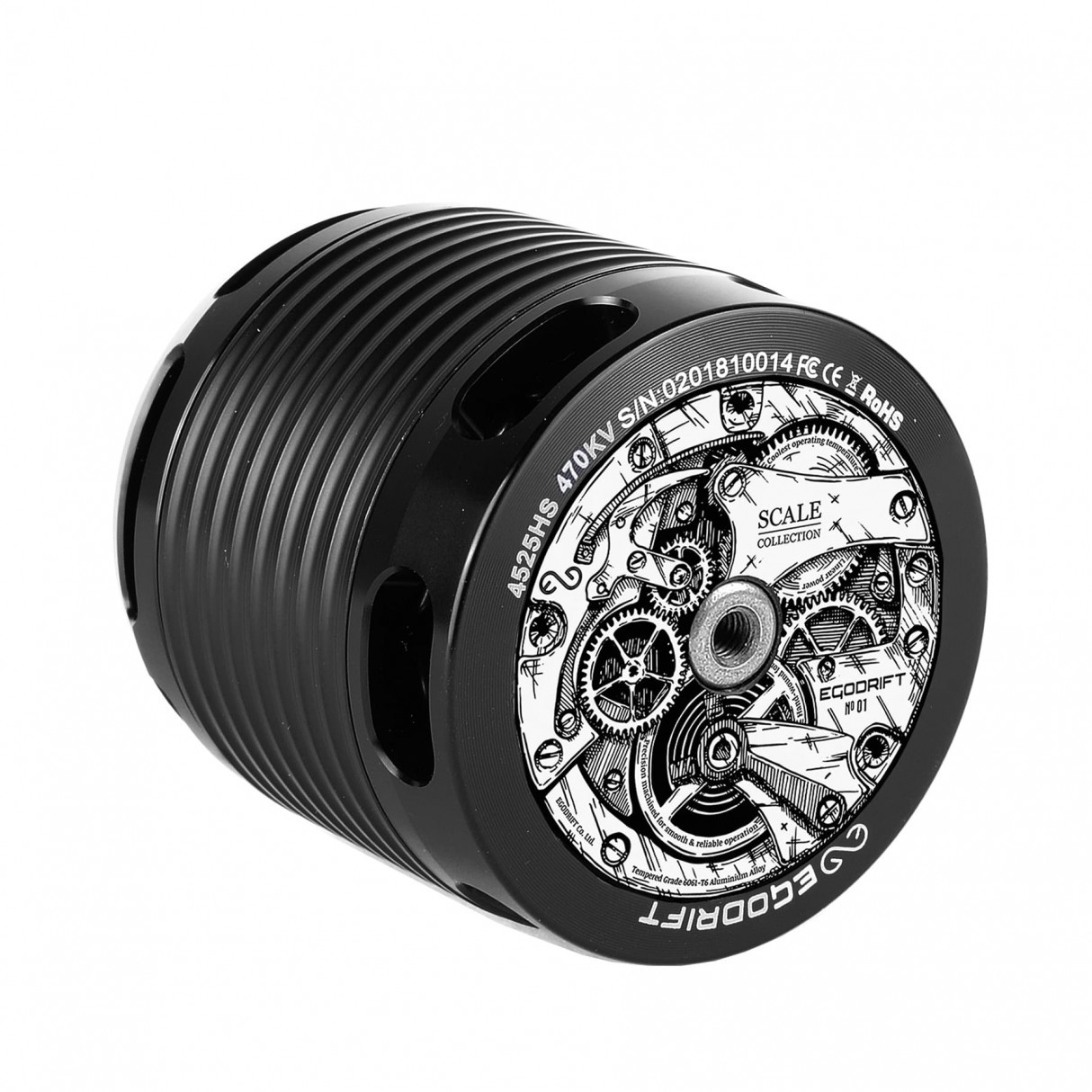

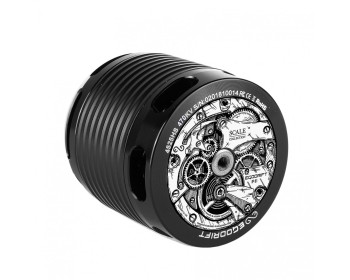

The Scale Collection 4525HS / 470kV is a motor option for 800+ sized scale models (and such up to 2m size), but can also be used on heavier 750 models as an alternative to the 4035HS/460kV motor where the mechanics allow for a wider body.
Each motor comes with gold connectors, mounting screws and an (optional) screw for additional securing of the bell.
SPECIFICATIONS
- Manufacturer: EGODRIFT
- Stator size: 4525
- Motor configuration: 12N10P
- Motor weight: 463g (16.33oz)
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.2mm
- Motor kV: 470kV
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- External shaft length (mm): 55 mm (Align, Mikado, Gaui, ...)
- Mounting hole pattern: 4xM4(30)
- Laser Design: Scale Collection
- LiPo cells: 12S, 14S
- Stator diameter: 45 mm
- Stator height: 25 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 55.58mm (2.188 inch)
- Diameter: 56.40 mm (2.22 inch)
- Idle current: 2.9A
- Maximum Current: 90A (Peak: 130A / 2 seconds)
- Maximum Power: 4520W (Peak: 6630W / 2 seconds)
- Internal resistance: 16 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
