Detaljer

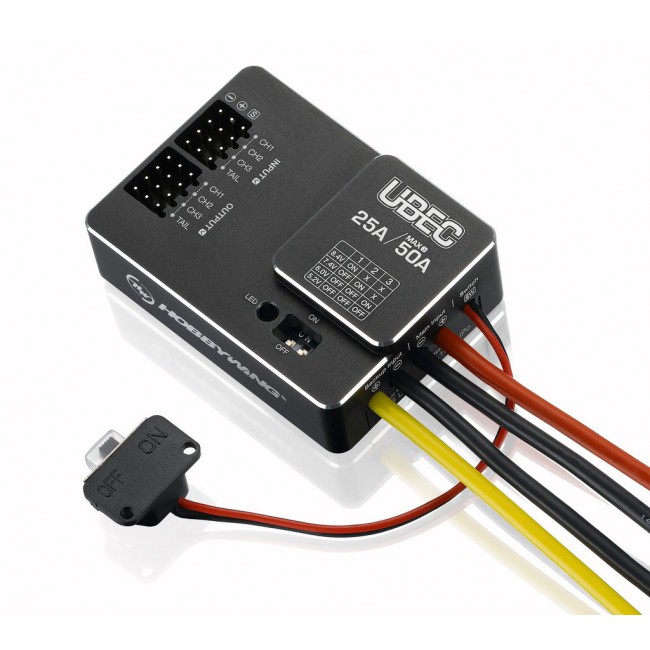

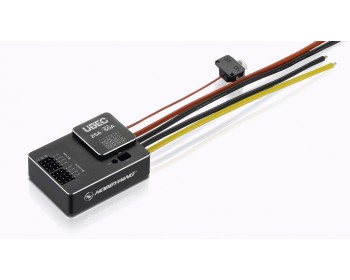

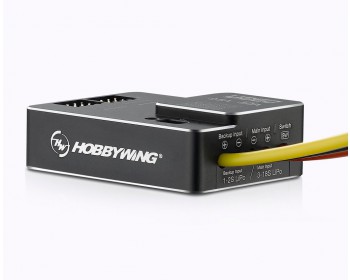

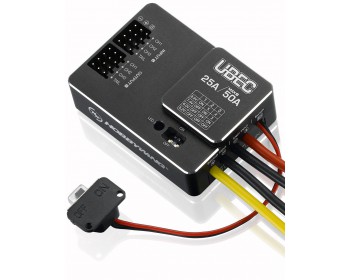

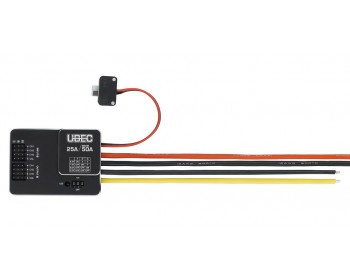

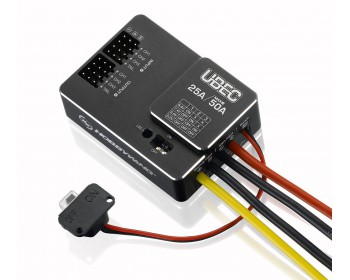

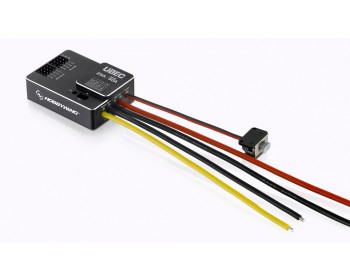

Meget kraftig bec som også kan settes i paralell med 2S lipo batteri for backup. Kan kobles enten som Powerbus i helikopter el.l eller standalone der du trekker minimums 2 kabler fra utgangen til FBL (og evnt RX)
pn | 30606000 |
Linear Mode/Switch Mode High Voltage/Regular |
Switch mode HV |
Cont./Peak Current | 25A/50A |
Input Voltage (of the Main Power Supply) | 3S~18S LiPo (9V~80V) |
Input Voltage (of the Backup Power Supply) | 1S~2S LiPo (/3-9V) |
Output Voltage |

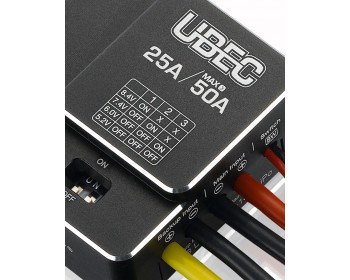

5.2V/6.0V/7.4V/8.4V Adjustable |
Input Wires | Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1 |

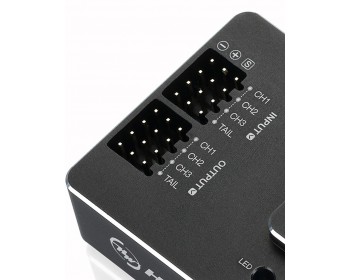

Output Wires | 3P Vertical Pin Header (60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included) |
Input Connectors | No |
Output Connectors | No |
Size/Weight | 55*40.2*17.6mm/74g |
