ESC, HobbyWing Platinum Pro V4 60A-LV

ESC, HobbyWing Platinum Pro V4 60A-LV

HobbyWing Platinum Pro 60A v4

Lagerstatus: På lager

Vanlig pris kr 790,00

Special Price kr 690,00

ELLER

Detaljer

Oppgradert ESC som har raskere prosessor og mye bedre governor enn dei gamle versjonene. BEC er stor nok for å kunne brukes i 380size heli og er perfekt match til Chase 360.

 1 Features

1.1 High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market) and high driving efficiency.
1.2 The maximum motor speed can reach 210000 RPM (for 2-poles), 70000 RPM (for 6-poles) and 35000 RPM (for 12-poles).
1.3 Multiple flight modes: Fixed Wing Airplane/ Heli with Governor Off/ Heli with Governor (Elf) / Heli with Governor Store.
1.4 Adjustable throttle range, compatible with various transmitters. It brings smooth, soft & linear speed adjustment and rapid throttle response.
1.5 Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.

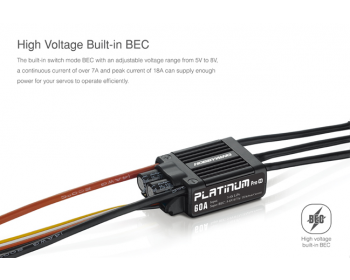

1.6 Built-in high-efficient & high-power (switch mode) BEC voltage can be adjusted
1.7 Brand new governor program, easy to operate; and its excellent speed-governing effect can make big rotor blades more stable even under rapid load change.
1.8 ”Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
1.9 Independent output port for RPM (that is: motor speed) signals.
1.10 Compatible LCD program box (*optional accessory), its simple and visual interface allows users to set/revise all the ESC parameters easily. (For detailed information, please refer to User Manual of LCD Program Box.)
1.11 Upgradeable firmware, you can upgrade the ESC after connected it to a PC via the USB cable on the program box.
1.12 The independent port, for connecting the program box and setting parameters, can also be the output port of the running status data of the ESC. When coordinating with the data transmission module, it can make the real-time data monitoring and logging possible.

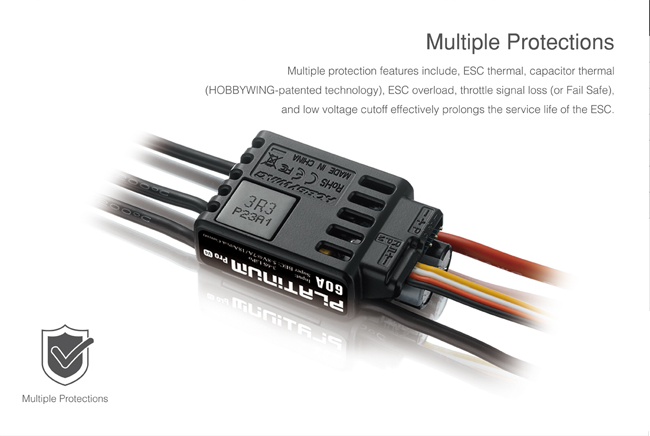

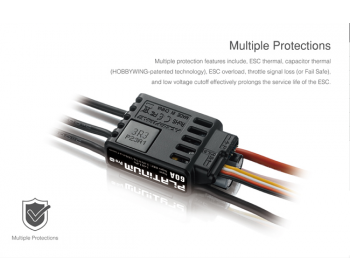

1.13 Multiple protection features including input voltage abnormality protection/ low-voltage cutoff protection/ throttle signal loss protection effectively prolong the service life of the ESC.


2 Specifications

Model Platinum 60A ESC V4
Application 450-480 Class Heli (Propeller: 325-360mm)
Input Voltage  3-6S LiPo
Cont./Peak Current (10s) 60A/80A

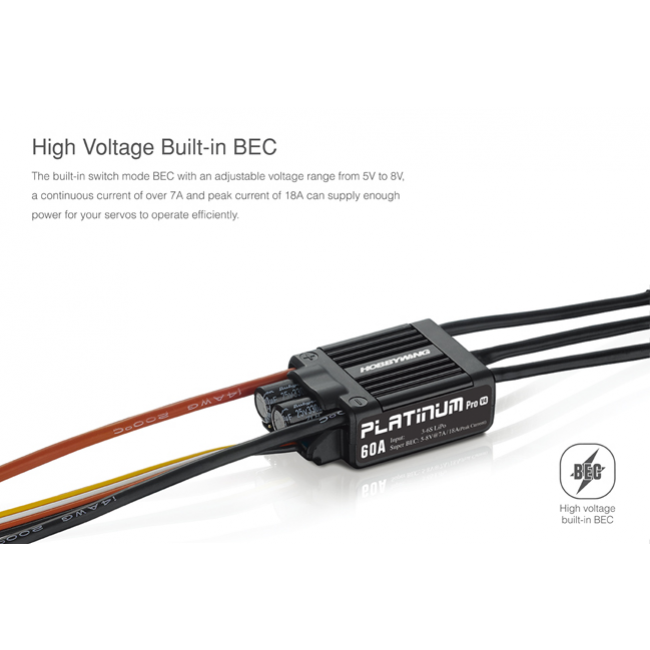

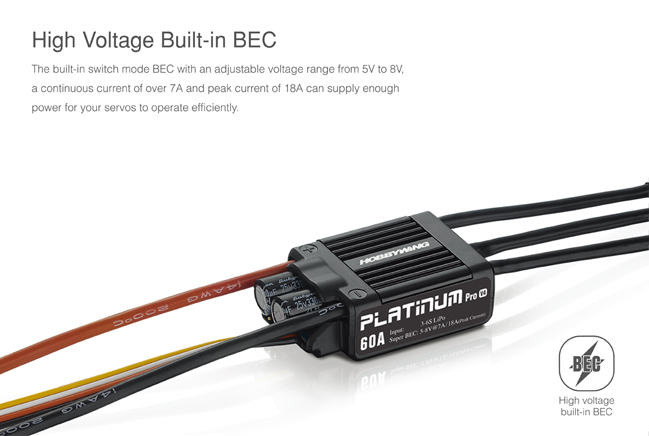

(Switch-mode) BEC 5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak
Separate Programming Port For connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire
Input/Output Wires 14AWG Input/Output Wires
Weight/Size 49g / 48x30x15.5mm
