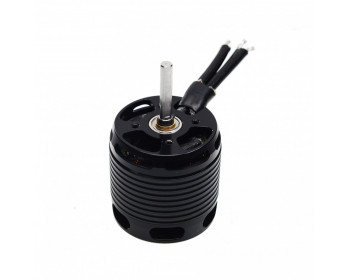

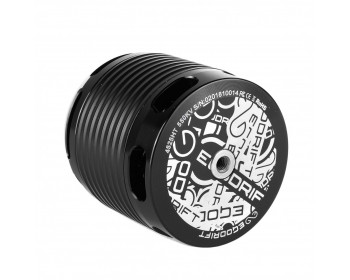

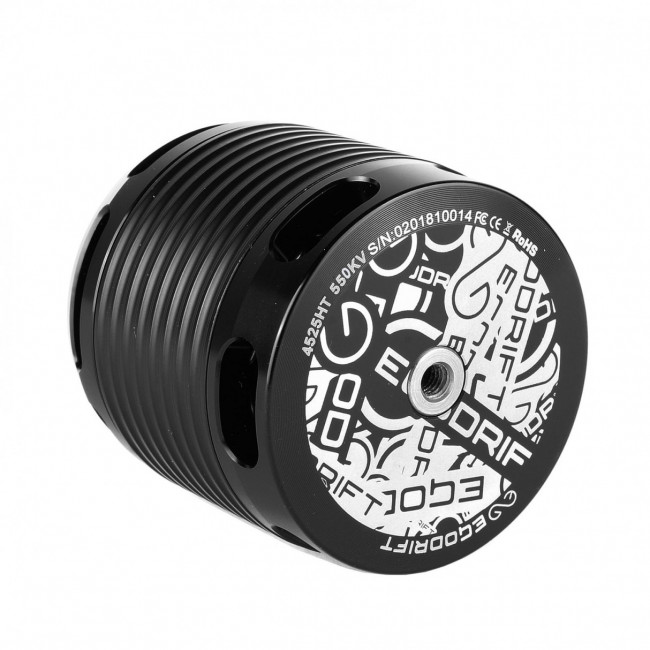

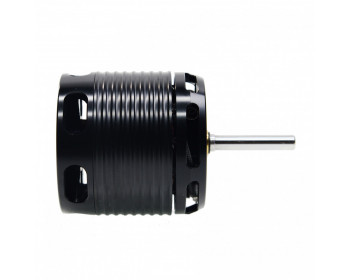

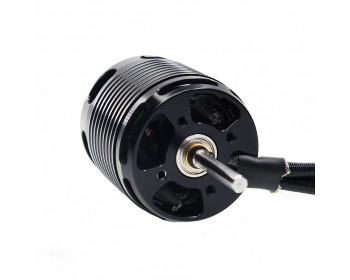

EGODRIFT Tengu 4525HT / 550kV Motor (55mm shaft)

EGODRIFT Tengu 4525HT / 550kV Motor (55mm shaft)

Hand-wound EGODRIFT Tengu 4525 HT (High Torque) Series 550kV brushless motor for 700-800mm class helicopters, such as the XLPower Spectre, SAB Goblin 700, Align T-Rex 700, Mikado Logo 700, or Gaui 700.

Lagerstatus: På lager

kr 3 890,00
ELLER

Detaljer

DETAILS

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4525HT Tengu comes with a kV rating of 550kV and fits all 700-800mm class helicopters, such as the XLPower Spectre 700, Goblin 700, T-Rex 700, Align 700, Mikado 700 or Gaui 700 (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm or 55mm (please choose)



SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4525
  • Motor configuration: 12N10P
  • Motor weight: 467g (16.47oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.3mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 550 kV
  • Stator diameter: 45 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 66.58mm (2.19 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 3.8A
  • Maximum Current: 140A (Peak: 250A / 2 seconds)
  • Maximum Power: 6720W (Peak: 12000W / 2 seconds)
  • Internal resistance: 11.5 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
