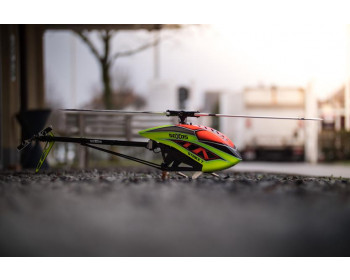

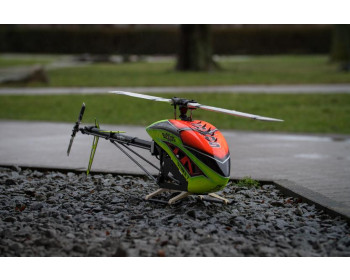

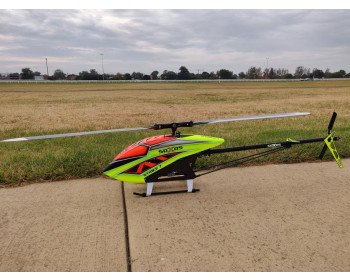

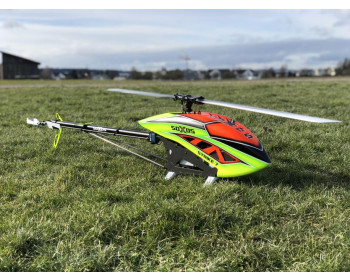

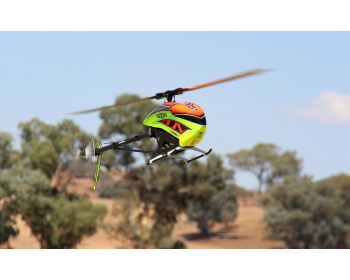

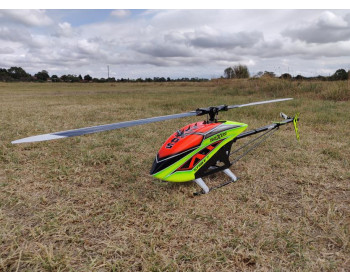

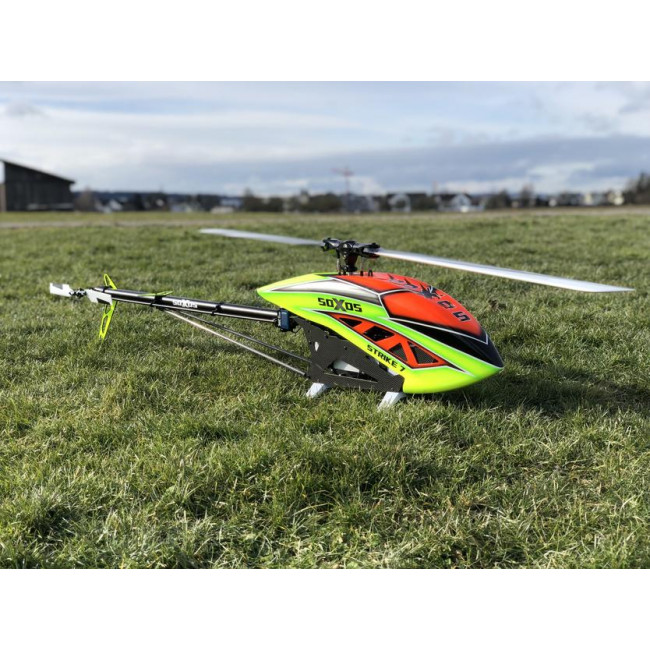

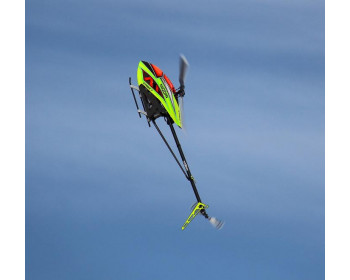

soXos Strike7, all-rounder of the 700 class.
«A must for every pilot!»
«A must for every pilot!»

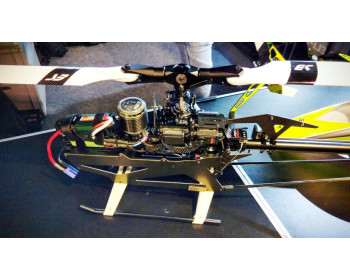

Because of the sophisticated mechanics, the soXos Strike7 achieves maximum rigidity with minimum take-off weight. This allows you to steer the helicopter precisely through the toughest 3D maneuvers and it stays where you want it. Thanks to the light mechanics you can have a lot of fun with the Strike7 even on low RPM flights.
So that you can recognize the soXos Strike7 well in every attitude, a light hood with clearly visible colors is used.
FEATURES SOXOS STRIKE7:
- Made from one piece milled aluminum main frame for minimal weight and maximum rigidity.
- The intelligent design allows easy maintenance and replacement of individual components.
- With the battery quick change system, the batteries can be changed easily and quickly.
- Thanks to the large battery compartment, Lipos up to 12S-6500mAh can be used.
- A robust helical gear made of high-strength plastic ensures optimum power transmission.
- All common engines of the 700 to 850 class can be installed, with 6mm or 8mm shaft diameter.
- The motor pinion is additionally guided at the bottom by a ball bearing. Thus motors with any wavelength can be installed. (At least 20mm, maximum 60mm)
- The gear ratios go from 1: 7.94 with 19-pinion, to 1: 10.06 with 15-pinion.
- Strong and short rotor head for maximum precision in extreme maneuvers.
- Specially developed rotor head damping for highest precision.
- Damped tail rotor housing, which allows a vibration-poor operation.
- Direct and play-free control of the tail servo to the tail rotor through the torsion bar.
- The hood is held by strong magnets. A simple assembly is guaranteed.
- High quality of the rear timing belt which prevents a static charge.
Kit contents:
- SoXos Strike7 Kit
- Engine sprocket 16z / 6mm for engines of 520-560KV / 12S
- Battery tray
- Canopy red / yellow
- Instructions
Recommended components (not included in KIT):
- Flybarless system
- Regulator: 12S from 130A
- Engine: 700 - 850 class with 450 - 560KV / 6mm or 8mm shaft (maximum motor size: Ø 63mm, height 64mm)
- Swashplate servos 3pcs .: min. 14kg / cm
- Tail servo: min. 6kg / cm
- Rotor blades 685mm - 710mm - Tail
- Tail blades: 105mm - 115mm
- 12S battery 4,000 - 6,500mAh (maximum size drive battery: width 62mm, height 68mm, length 350mm)
- Transmitter / Receiver
Gear ratios (pinions are available for 6mm or 8mm motor shafts)
15 teeth: 10.06
16 teeth: 9.43 (included in the kit for 6mm shaft)
17 teeth: 8.87
18 teeth: 8.38
19 teeth: 7.94
TECHNICAL DESCRIPTION
Weight of the mechanism without RC components & rotor blades: about 2,200 g
- Weight of the mechanism without drive battery : about 3750 g - main rotor diameter: about 1,563 mm with 690mm leaves.
- Length: 1,340mm
- Height: 340mm
