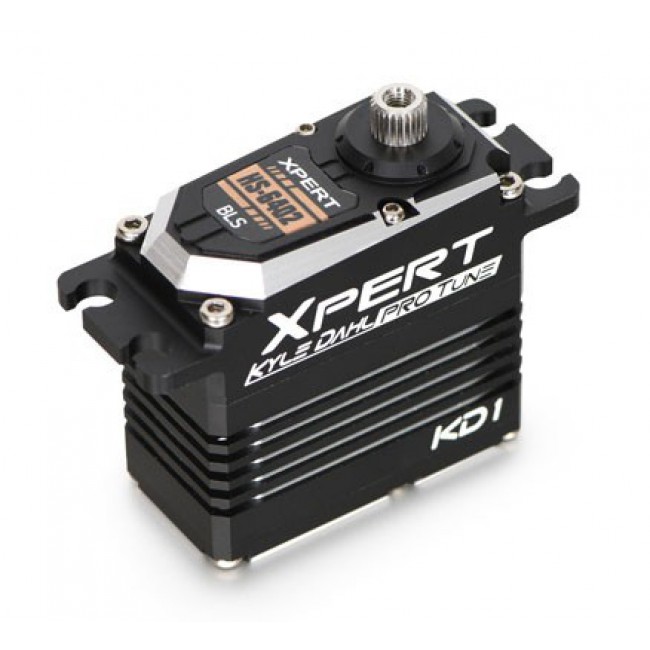

Xpert-RC HS-6402-HV (KD1) Standard Servo (26.43 kg / 0.07 sec@7.4V)

Xpert-RC HS-6402-HV (KD1) Standard Servo (26.43 kg / 0.07 sec@7.4V)

Ny utgave av R1 servoen som er tunet av Kyle Dahl. enda mer presis og raskere respons.

Lagerstatus: På lager

kr 1 790,00
ELLER

Detaljer

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert RC have been developing this range for some time now and have been carrying out extended durability testing and performance testing is some of the toughest fields in the market including 1/8thBuggy and Truggy as well as some very large high demand flight units.

Xpert have taken a quality first approach with the entire range and focus on high performance.

The quality of these servos has stunned us, featuring very precise PCB production and use of only the highest quality components. The quality is apparent as soon as the servo is first seen but becomes even more apparent when used exhibiting extreme accuracy and position holding.

Features

  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • Operating frequency up to 400Hz
Type Standard
Product Name HS-6402-HV(KD1)
Part Name HS-6402-HV(KD1)
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60°
Torque (oz/in) @6.0V: 296.45 oz-in @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
Torque (kg/cm) @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
Dimensions 40x37.80x20 mm
Weight 72 g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520 μs
Applications Helicopter
Uper and Bottom Case XC-05
Hardware Parts Xpare-01
Gear Set XGS7232S

Tilleggsinformasjon

Bredde Nei
Høyde Nei
Lengde Nei
