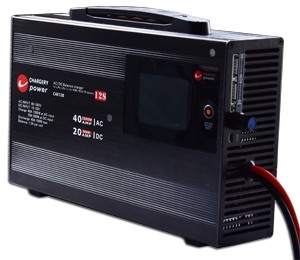

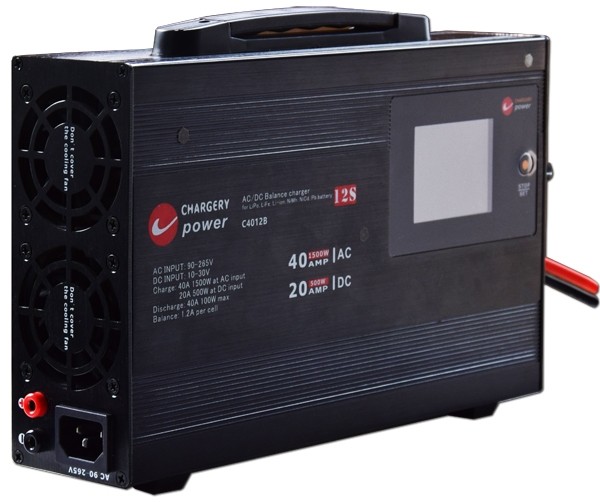

Chargery C4012 (1500W / 12S Charger)

Chargery C4012 (1500W / 12S Charger)

Kraftig 1500Watt lader med innebygget PSU som kan lade batteri helt opp til 12S

Lagerstatus: På lager

kr 3 990,00


C4012B is a AC & DC dual input balancer charger, programmed battery type, cell count, charge current, charge terminal voltage for LI-ION, LIPO, LIFE, LiTo, NIMH/NICD, and Lead Acid battery.

Optimization of system design make sure the 1500W charger consume less than 1W at idel mode. TFT color LCD is easy to display clearly voltage, current, capacity charged and internal temperature.


Although C4012B charge any battery at 40A 1500W, the efficiency is still up to 94% at a small size.


Special Features

AC/DC dual input and identify automatically when AC and DC source connected to the charger simultaneously
100W maxmial discharge need not any external load
1.2A balance curren per cell
Over current protection
Over voltage protection
Charge power protection
Over temperature protection
Anti spark on battery connection
Reverse polarity protection of battery connection
Wrong battery connection protection when multi battery pack connected in series on adapter board.
LCD display battery voltage, charge current, charging time, capacity charged
Charge terminal voltage, terminal current and cell count is programmed
Supports upgrading the firmware program by USB port.


Input voltage: DC 10-28V, 30V max. or AC 100-265V.
Input Current: 25A maximal at DC input, and 15Arms at AC110V input
Charge current: 0.1-20A, 500W max. at DC input or 1-40A, 1500W max. at AC input
Discharge Current: 0.1-40A, 100W max.
Accuracy of the cell voltage: -5mV/+5mV
Balance current: 1.2A per cell only for LiPoly, Li-ion, LiTo and LiFePO4 battery pack
Battery Type:1-12S LiPoly, Li-ion, LiHV, LiTo, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack


Mechanical Characteristics

Size:281*170*68 (L×W×H, mm) or 11.1×6.7×207 (L×W×H, inch))
Weight: 3.5Kg
