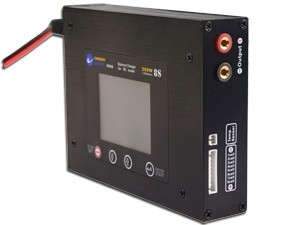

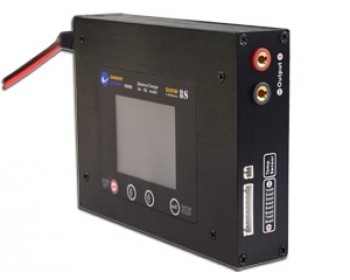

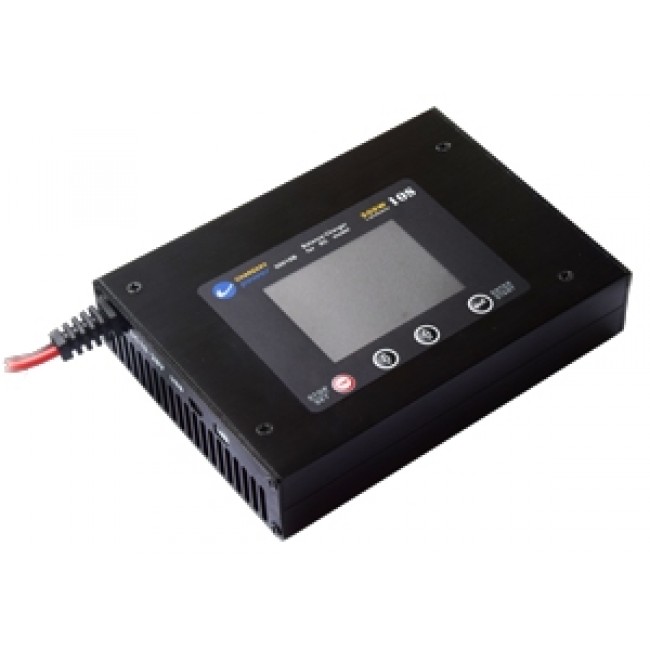

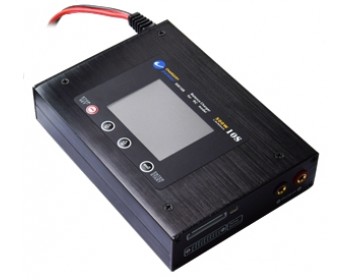

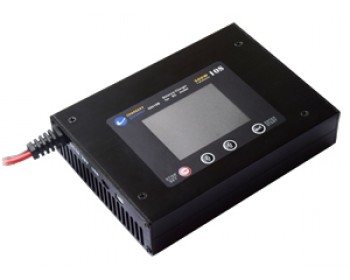

006B,5008B and 50010B are Synchronous Rectification and microprocessor controlled high performance rapid charger/discharger/balancer for NIMH/NICD, LI-ION, LIPO, LIFE, LTO and Lead Acid battery packs with cell balancer..
Chargery improved the voltage accuracy to under 5mV even up to 10S lipo cells, that help us to protect and manage each cell voltage during charge and discharge.
Unique balance algorithm realize up to 1.3A current draw from each cell
Creative circuit topology realize response quickly to any instantaneously changes on input and output voltage.
Unique charge architecture make the charger response quickly to any changes of voltage on input and output.
The charger use advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 10S LiPo battery.
The charger adopts advance balance circuit and Algorithm, constant 1.3A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell voltage balance status at the shortest time. Over temperature protection make sure the system safety during balance.
Charger internal temperature protection. When the internal temperature exceeds the reduce temperature, the output power is automatically decreased; and the charger will stop working when temperature exceeds the shut-down temperature.
Intelligent fan control circuit sense internal temperature via temperature sensor, to thereby control the fan speed.
TFT LCD screen provides rich information including current, voltage, power, capacity, time, working status and temperature and so on.
Supports upgrading the firmware program by USB port
The charger features a maximal safety protection,
Reversed polarity protection on input and output,
Anti-spark on input and output
Wrong battery pack connection protection when multi battery pack connected in series on adapter board.
Charge time, charge capacity and battery temperature protection
Input voltage: DC 10-28V, 30V max.
Input Current: 25A maximal
Charge current: 0.1-20A, 500W max.
Discharge Current: 0.1-10A, 35W max.
Accuracy of the cell voltage: -5mV/+5mV
Balance current: 1.3A per cell only for LiPoly, Li-ion and LiFePO4 battery pack
Battery Type: LiPoly, Li-ion, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack
Input panel of 5006B, 5008B, 50010B
Size：154*114*33 (L×W×H, mm) or 6.1×4.48×1.3 (L×W×H, inch)
Input power cable: AWG14 wire, 600mm length
