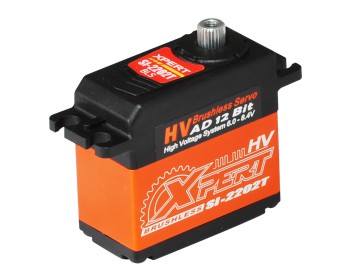

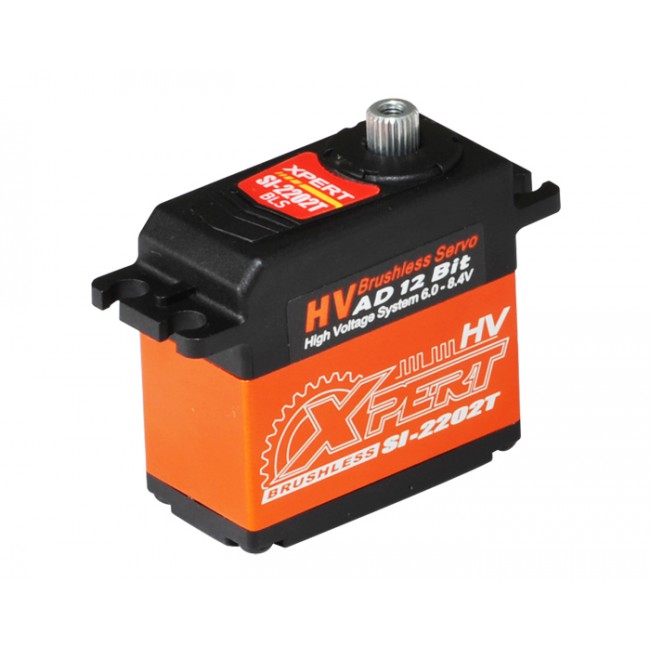

Xpert-RC SI-2202T HV Standard Servo (7.4 kg / 0.040 sec@7.4V)

Xpert-RC SI-2202T HV Standard Servo (7.4 kg / 0.040 sec@7.4V)

Xpert-RC SI-2202T 7.4 kg / 0.040 sec@7.4V

Lagerstatus: På lager

kr 990,00
ELLER

Detaljer

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert RC have been developing this range for some time now and have been carrying out extended durability testing and performance testing is some of the toughest fields in the market including 1/8thBuggy and Truggy as well as some very large high demand flight units.

Xpert have taken a quality first approach with the entire range and focus on high performance.

The quality of these servos has stunned us, featuring very precise PCB production and use of only the highest quality components. The quality is apparent as soon as the servo is first seen but becomes even more apparent when used exhibiting extreme accuracy and position holding.

SI High Voltage Range.

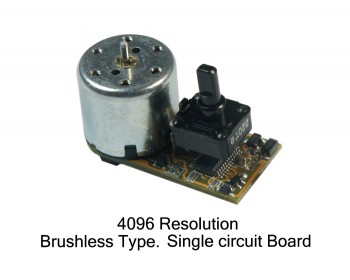

All SI Series servos all feature brushless motors and 4096 steps of resolution giving ultra precise control and low current draw.

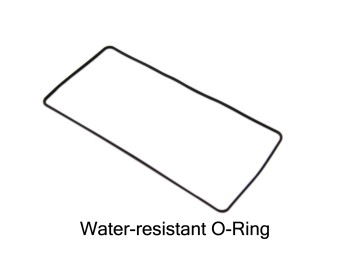

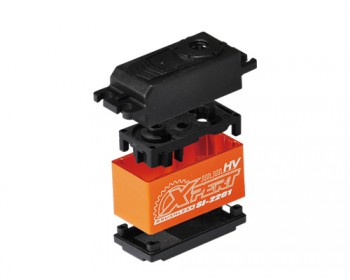

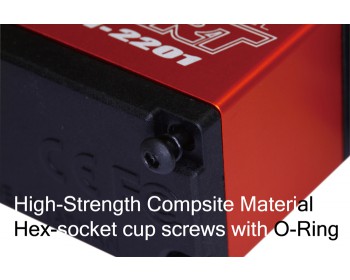

The SI Series servos feature a machined outer case which locates directly on the brushless motor to provide cooling, increasing efficiency and strength. Also features O Ring seals between case sections and even on the retaining screws.

  • Brushless Motor provides superb speed and power as well as stunning efficiency and low current draw even in relatively high torque applications..
  • High Voltage - for usage between 6.0v and upto Direct Lipo 8.4v
  • 4096 Resolution steps provides super accurate class leading control
  • CNC Machined outer case gives strength and cooling to the servo
  • Fully ballraced, metal geared high precision drive train.
  • One of the lightest servos on the market in this class at just 65g
  • Comes supllied with mounting grommets to reduce vibration through to the servo, a selection of horns and fittings.
  • 760us narrow band



All Xpert RC Servos will come with a 12month warranty, which is an exchange warranty rather than repair. NB This does not cover water damage or incorrect set up of the servo such as EPA settings / servo stalling.

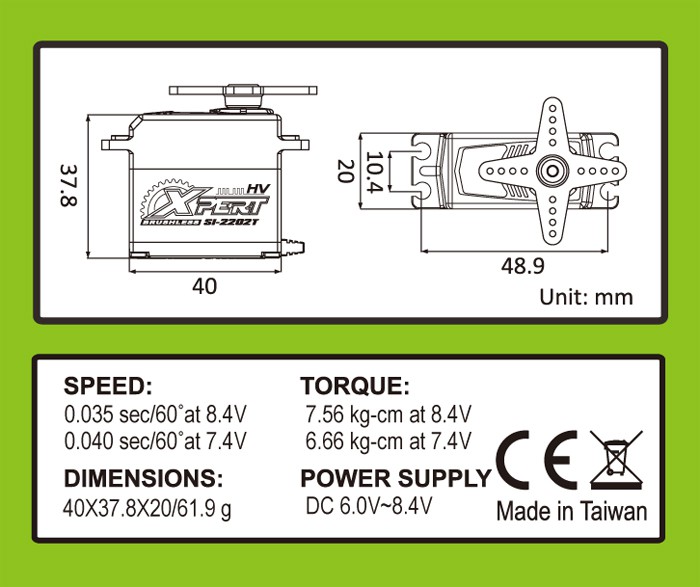

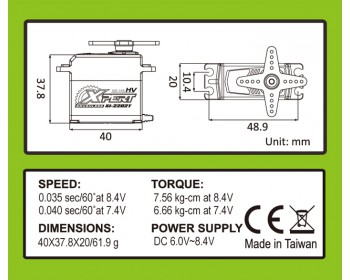

SI-2202T-HV Specifications.

Dimensions: L40mm x W20mm x H37.8mm
Weight: 65.0g
Speed @ 8.4v / 60deg 0.035secs
Torque @ 8.4v 7.56 kg/cm (104.93 oz/in)
Speed @ 7.4v / 60deg 0.040secs
Torque @ 7.4v 7.40 kg/cm (83.28 oz/in)
Speed @ 6.0v / 60deg 0.049secs
Torque @ 6.0v 6.00 kg/cm (67.52 oz/in)

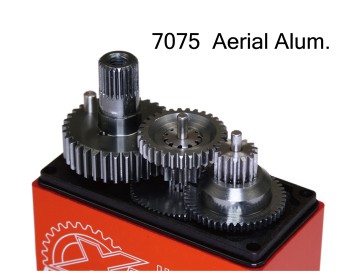

Gear:  7075 Aircraft Alloy
Bearing:  2BB
Case:  Outer Aluminium 25 Tooth Spline
Operating Voltage 6.0v – 8.4v
Suggested Useage: Heli Tail Rudder.
